Ceramic parts for accelerators

Components made of high-performance ceramics for particle accelerators

Vacuum chambers made of Oxide Ceramics are used in accelerator units. In contrast to metallic parts, ceramic components avoid shielding of the rapidly changing external magnetic fields. Ceramic material is not heated by eddy currents. The additional coating on the inner surfaces of the ceramic chambers, e.g. Ti or TiN, ensures the reliable discharge of image current and prevents the emission of secondary electrons. Technical Ceramics also displays outstanding properties of electrical insulation. The dielectric strength of the material lies at >30 kV/mm. F99.7 Oxide Ceramics are used in a number of renowned German institutes. These include the German Electron-Synchrotron (DESY) based in Hamburg and Zeuthen, the Jülich Research Centre (FZJ), the Helmholtz Centre for Heavy-Ion Research (GSI) in Darmstadt and the Karlsruhe Institute of Technology (KIT). Also at international level, accelerator technology relies on Oxide Ceramics: the Large Hadron Collider (LHC) at CERN, the European Organisation for Nuclear Research in Switzerland, Cornell University, Ithaca, USA, and the Budker Institute of Nuclear Physics (BINP) at Novosibirsk in Russia.

Would you like a personal consultation?

We're happy to help you.

Contact us now

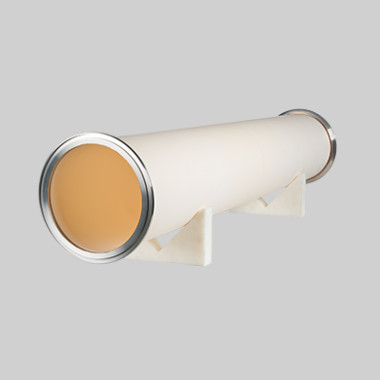

Vacuum chamber 1500 mm

Vacuum chamber with ceramic-ceramic-glass brazed and ceramic-metal hard solder joints, length: 1500 mm

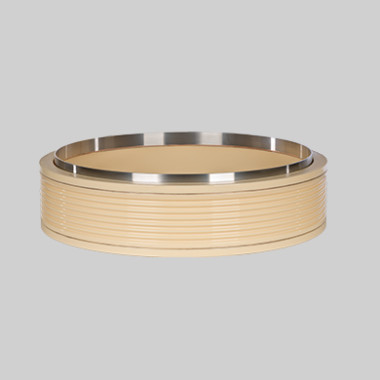

Insulator for ion source

outer diameter: 580mm

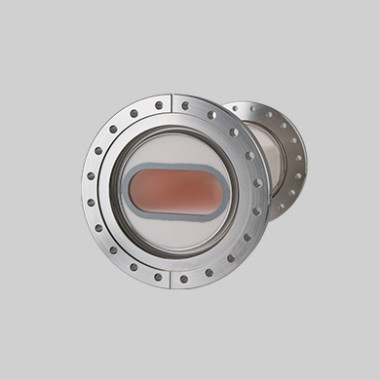

Vacuum chamber with DN 160 CF flange

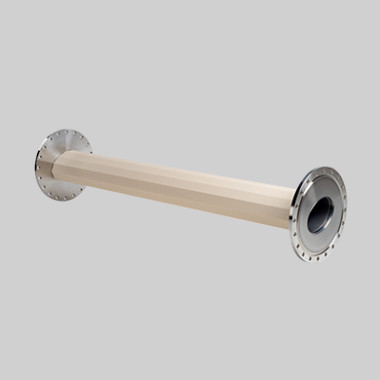

Vauum chamber
